SmartPump

Automatically Fills Underground & Overhead Tanks 24/7
Even when you are asleep or away from home





- Order Now - - Contact Us -

Product Overview

We realize that your time is valuable, it should be spent on better things rather than checking for incoming water in the main lines and checking the underground tank for over flow all the time.

Imagine you wake up in the morning and you find your underground water storage tank full; imagine that you go to your office in the morning and when you return home in the evening you find your underground water storage full or imagine that you are sitting in your home and can monitor and control the status of your underground water storage, overhead water tank and motors on your mobile; while sitting in your home...

All of the above is possible with our SmartPump technology.

SmartPump is a revolutionary product that converts your ordinary water pump and overhead motor into automated water flow management system.

SmartPump makes intelligent decision on how to and when to turn on the water pump, fill the underground tank and turns off the water pump when the tank is full. SmartPump also checks for incoming water pressure and turn off the pump if the water pressure is low. Everything is done automatically by SmartPump and you get tank full of water without lifting a finger.

Smart Pump manages incoming water supply, water pump, underground tank storage, overhead tank motor and overhead tank storage for you. Using this technology you don't have to worry about checking incoming water, underground tank or overhead tank for water overflow anymore.

(WiFi range maybe limited to max 50 feet, in most cases it covers the entire house).

Benefits of using SmartPump

  • Prevents water pump running redundantly
  • Preserves electricity
  • Reduces electricity bill
  • Prevents motor wear and tear
  • Increases motor life
  • Increases pump life
  • Never worry about water shortages again
  • Never worry about water overflow again
  • Saves water wastages
  • Smartly manage your pump and motor using your mobile while sitting in your home

Main Features

  • Allows users to connect with Smart Pump using WiFi
  • Mobile App displays all features of Smart Pump
  • Mobile App also allows users to configure timing of pump
  • Mobile App allows users to turn ON and turn OFF pump at any time while sitting in house.

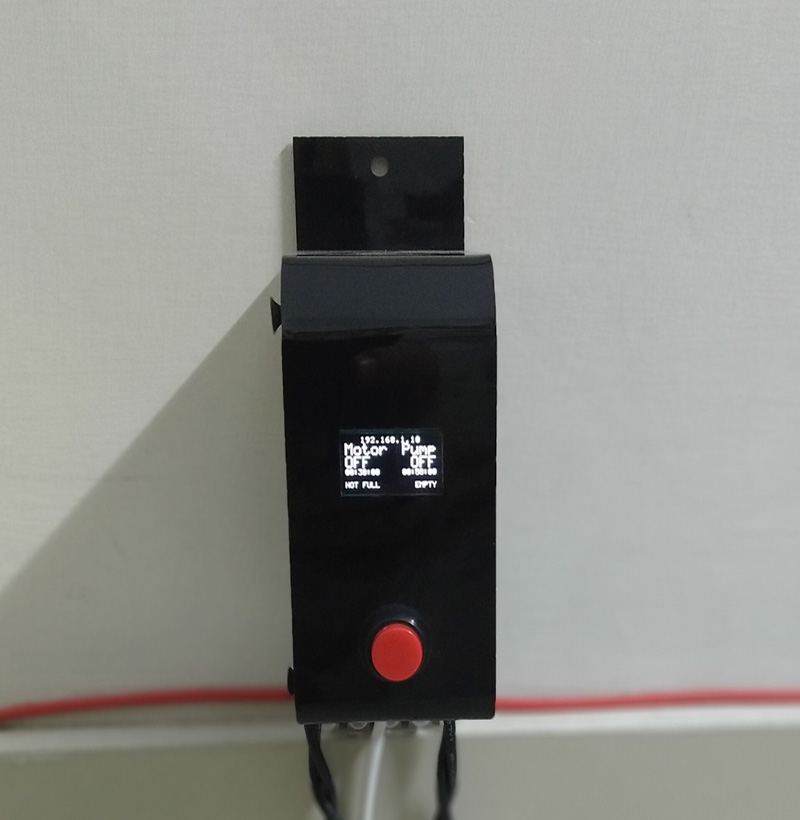

  • LCD display shows digital details of incoming water, underground tank status, motor status and motor operational timings
  • Controls the main line pump to manage incoming water supply
  • Checks the incoming water pressure
  • Turn off pump is water pressure is less than the desired limit and check again after 30 minutes.
  • Checks underground storage tank status
  • Turns off the main pump if underground tank is full
  • Timer feature for overhead tank motor
  • Turns off the overhead motor when timer countdown is zero
  • Monitors overhead tank and turns off motor when overhead storage overflow is detected.

Status Indications

  • LCD Display used to display detailed information
  • Pump on/off status display
  • Incoming water flow pressure status: (0-100%)
  • Underground Tank status information: Empty / Full
  • Overhead Tank status information: Empty / Full
  • Overhead Tank motor timer information
  • Overhead motor ON/OFF status display
  • Water checking frequency in seconds
  • Wait for water pressure timing status

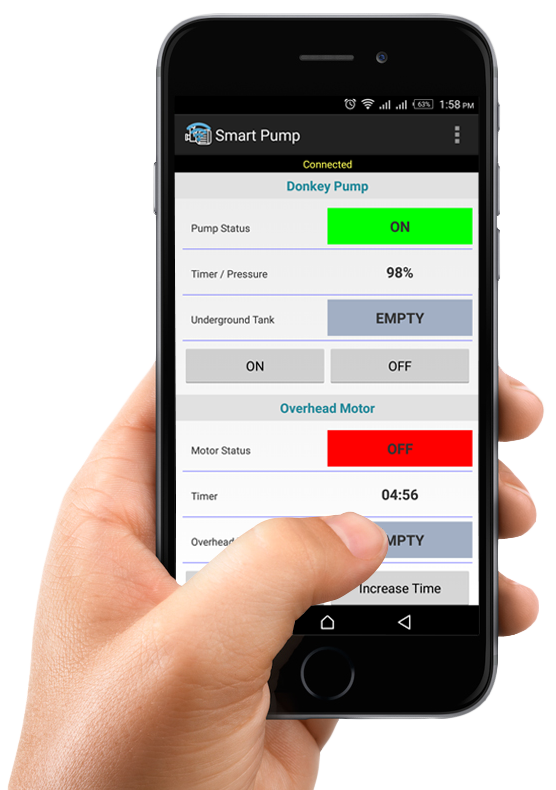

Mobile App Features

  • Displays status of underground motor (ON/OFF)
  • Displays status of overhead motor (ON/OFF)
  • Allows users to control underground motor
  • Allows users to control overhead motor
  • Allows users to change timer for overhead motor
  • Allows users to change timing of motor on/off for water detection.
  • Allows user to change duration for water detection
  • Displays status of incoming water pressure (1-100%)
  • Displays status of underground water tank (Empty/Full)
  • Displays status of overhead water tank (Empty/Full)

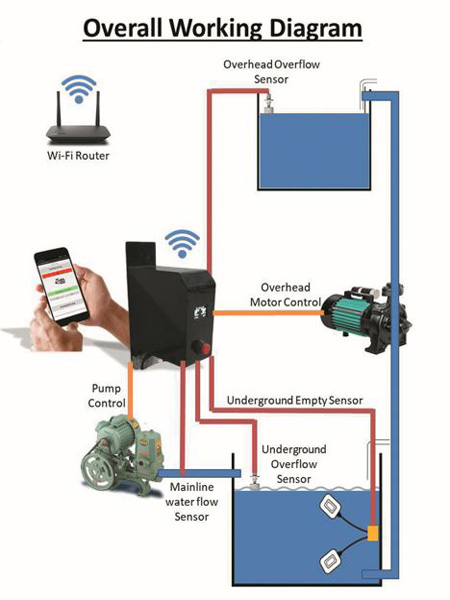

Installation Layout

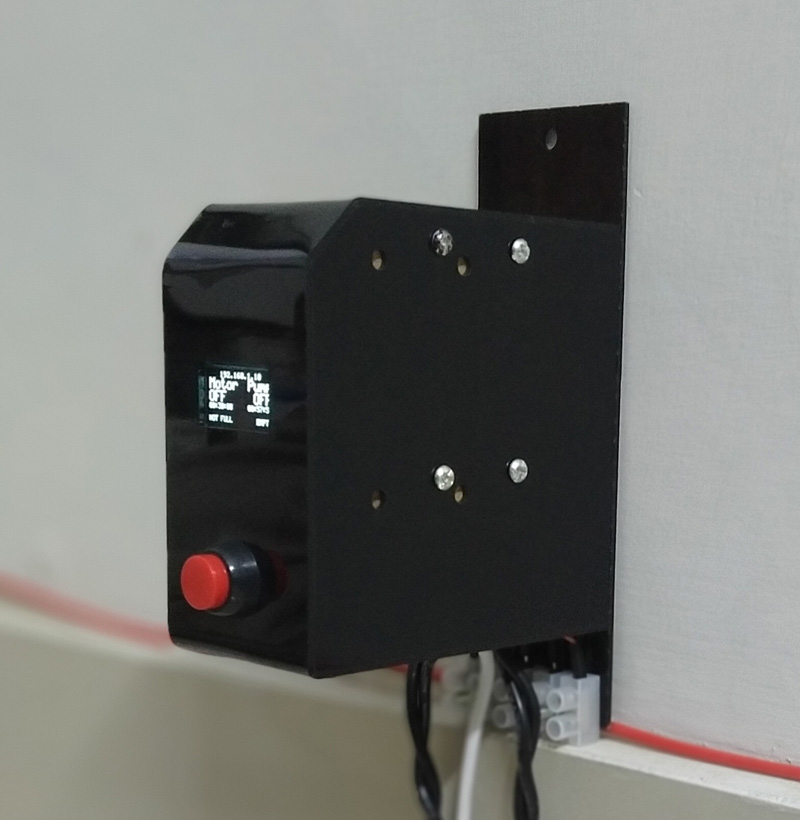

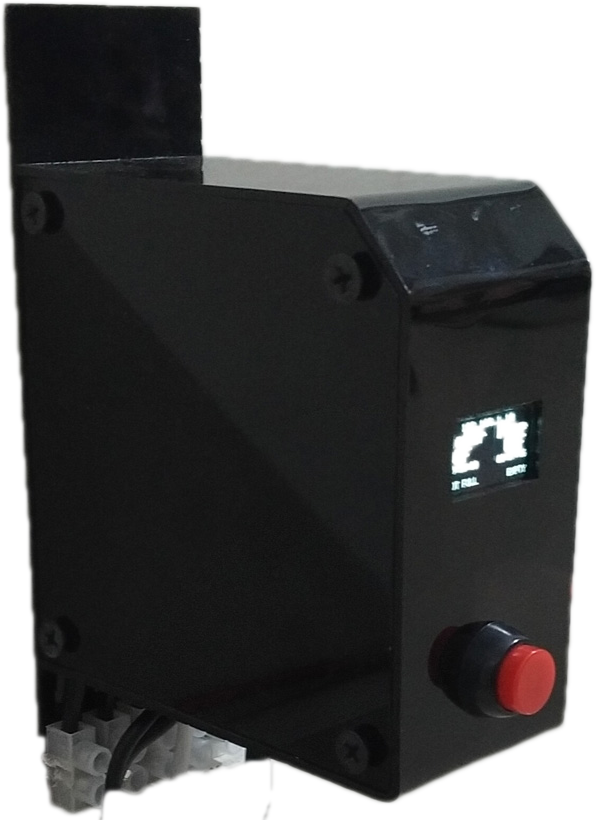

SmartPump Model SP10A

Technical Specifications

- Power requirements: 5V 1A USB Adapter

- Product dimensions: 10cm X 10cm X 5cm

- Max Load: 2.2 KW (10A 220V AC) for suction pump

- Max Load: 2.2 KW (10A 220V AC) for overhead motor / monoblock

- Supports upto 2.5HP motors having less than 10A startup load

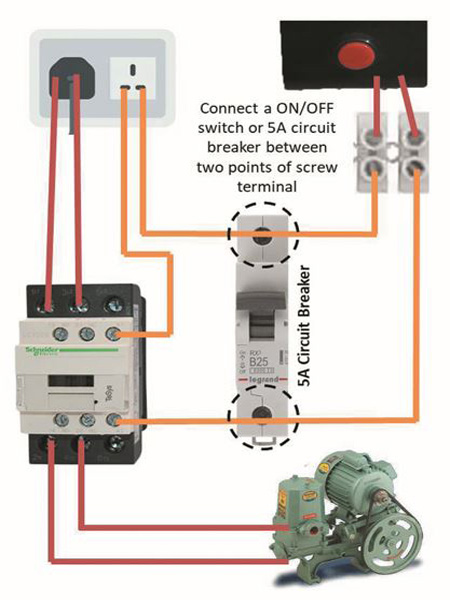

* Magnetic contactors of high current ratings should be used with SmartPump in case suction pump or monoblock (overhead motor) uses more than 10A current otherwise the internal relays will get damaged.

* Use Amp meter to measure current rating of your pump and motor to be sure.

PKR 27,000/-

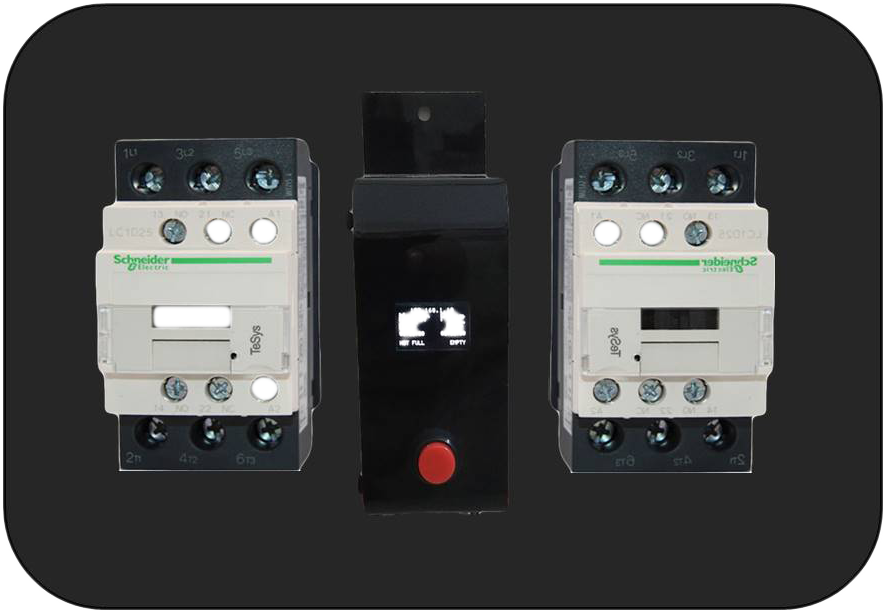

SmartPump Model SP20A

Technical Specifications

- Power requirements: 5V 1A USB Adapter

- Product dimensions: 10cm X 10cm X 30cm

- Includes two 20A Magnetic Contactors

- Max Load: 4.4 KW (20A 220V AC) for suction pump

- Max Load: 4.4 KW (20A 220V AC) for overhead motor / monoblock

- Supports upto 4HP motors having less than 20A startup load

* Use Amp meter to measure current rating of your pump and motor to be sure.

PKR 32,000/-

SmartPump Model SP30A

Technical Specifications

- Power requirements: 5V 1A USB Adapter

- Product dimensions: 10cm X 10cm X 30cm

- Includes two 30A Magnetic Contactors

- Max Load: 6.6 KW (30A 220V AC) for suction pump

- Max Load: 6.6 KW (30A 220V AC) for overhead motor / monoblock

- Supports upto 5HP motors having less than 30A startup load

* Use Amp meter to measure current rating of your pump and motor to be sure.

PKR 35,000/-

Sold Seperately

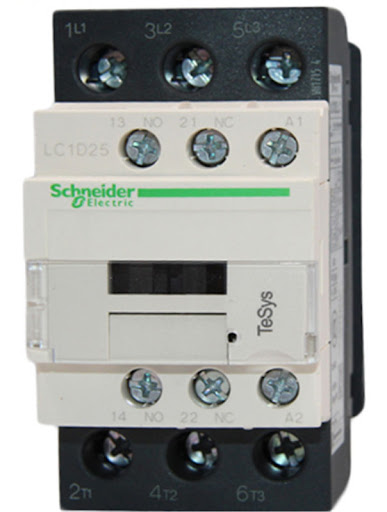

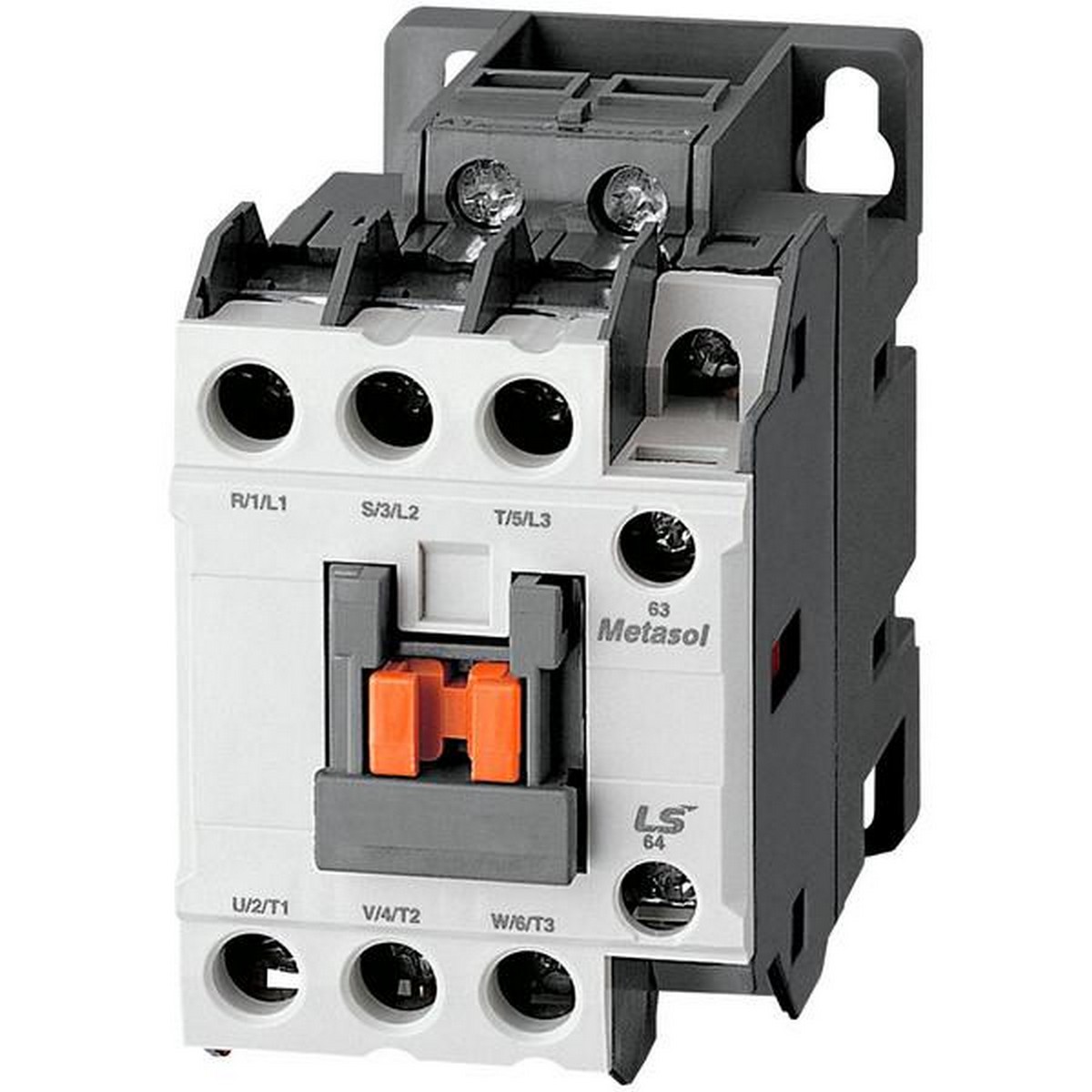

  • Magnetic Contactor
  • Current rating 20A
  • Max load 4.4 KW at 220V AC
  • 3 Pole
  • PKR 3,500/-

    only
  • Magnetic Contactor
  • Current rating 30A
  • Max load 6.6 KW at 220V AC
  • 3 Pole
  • PKR 4,500/-

    only
